Custom AlertDialog with EditText and ImageView, build with AlertDialog.Builder

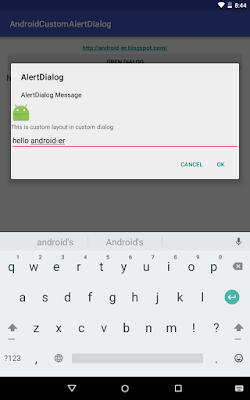

Example to builld AlertDialog with EditText and ImageView, build with AlertDialog.Builder.

Create layout/dialog_layout.xml, to define the layout of the dialog.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:id="@+id/image"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="This is custom layout in custom dialog"/>
    <EditText
        android:id="@+id/dialogEditText"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

MainActivity.java

package com.blogspot.android_er.androidcustomalertdialog;

import android.app.AlertDialog;
import android.content.DialogInterface;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {

    Button btnOpenDialog;
    TextView textInfo;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        btnOpenDialog = (Button)findViewById(R.id.opendialog);
        textInfo = (TextView)findViewById(R.id.info);

        btnOpenDialog.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                openDialog();
            }
        });
    }

    private void openDialog(){
        LayoutInflater inflater = LayoutInflater.from(MainActivity.this);
        View subView = inflater.inflate(R.layout.dialog_layout, null);
        final EditText subEditText = (EditText)subView.findViewById(R.id.dialogEditText);
        final ImageView subImageView = (ImageView)subView.findViewById(R.id.image);
        Drawable drawable = getResources().getDrawable(R.mipmap.ic_launcher);
        subImageView.setImageDrawable(drawable);

        AlertDialog.Builder builder = new AlertDialog.Builder(this);
        builder.setTitle("AlertDialog");
        builder.setMessage("AlertDialog Message");
        builder.setView(subView);
        AlertDialog alertDialog = builder.create();

        builder.setPositiveButton("OK", new DialogInterface.OnClickListener() {
            @Override
            public void onClick(DialogInterface dialog, int which) {
                textInfo.setText(subEditText.getText().toString());
            }
        });

        builder.setNegativeButton("Cancel", new DialogInterface.OnClickListener() {
            @Override
            public void onClick(DialogInterface dialog, int which) {
                Toast.makeText(MainActivity.this, "Cancel", Toast.LENGTH_LONG).show();
            }
        });

        builder.show();
    }
}

layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        android:autoLink="web"
        android:text="http://android-er.blogspot.com/"
        android:textStyle="bold" />

    <Button
        android:id="@+id/opendialog"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Open Dialog"/>

    <TextView
        android:id="@+id/info"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="20dp"
        android:textStyle="bold"/>
</LinearLayout>
