Friday, January 8, 2010

Android File Explorer with JPG's Exif & Photo displayed

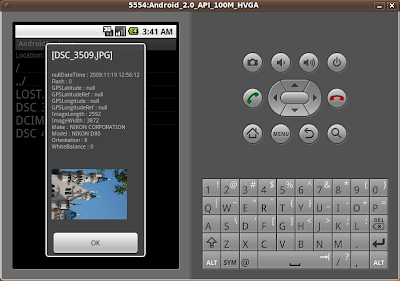

In the former exercise, "Android File Explorer with JPG's Exif info", only text of Exif will be displayed on the dialog when a JPG file is clicked. Here, I want to show the photo also.



A new dialog, jpgdialog.xml, will be created if a JPG is clicked. It's used to show the Exif and photo of the clicked item. Please note here; onCreateDialog() is only called the very first time a dialog is opened. If we display Exif and photo inside onCreateDialog(), it will always show the first photo when it is created. So the actual code to display the Exif and photo should be placed inside onPrepareDialog().

Both main.xml and row.xml keep no change as in "Android File Explorer with JPG's Exif info".

Create a new /res/layout/jpgdialog.xml, to have a TextView, a ImageView and a Button.
<?xml version="1.0" encoding="UTF-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/layout_root"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:paddingLeft="10dip"
android:paddingRight="10dip"
>
<TextView android:id="@+id/text"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="11sp" />
/>
<ImageView android:id="@+id/image"
android:layout_width="150px"
android:layout_height="150px"
/>
<Button android:id="@+id/okdialogbutton"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="OK"
/>
</LinearLayout>


Modify AndroidExplorer.java

package com.AndroidExplorer;

import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import android.app.AlertDialog;
import android.app.Dialog;
import android.app.ListActivity;
import android.content.Context;
import android.content.DialogInterface;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.media.ExifInterface;
import android.os.Bundle;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class AndroidExplorer extends ListActivity {

static final int ID_JPGDIALOG = 0;

String filename;
String exifAttribute;
TextView exifText;
ImageView bmImage;
BitmapFactory.Options bmOptions;
File jpgFile;
Dialog jpgDialog;

private List<String> item = null;
private List<String> path = null;
private String root="/";
private TextView myPath;

/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
myPath = (TextView)findViewById(R.id.path);
getDir(root);
}

private void getDir(String dirPath)
{
myPath.setText("Location: " + dirPath);

item = new ArrayList<String>();
path = new ArrayList<String>();

File f = new File(dirPath);
File[] files = f.listFiles();

if(!dirPath.equals(root))
{

item.add(root);
path.add(root);

item.add("../");
path.add(f.getParent());

}

for(int i=0; i < files.length; i++)
{
File file = files[i];
path.add(file.getPath());
if(file.isDirectory())
item.add(file.getName() + "/");
else
item.add(file.getName());
}

ArrayAdapter<String> fileList =
new ArrayAdapter<String>(this, R.layout.row, item);
setListAdapter(fileList);
}

@Override
protected void onListItemClick(ListView l, View v, int position, long id) {

File file = new File(path.get(position));

if (file.isDirectory())
{
if(file.canRead())
getDir(path.get(position));
else
{
new AlertDialog.Builder(this)
.setIcon(R.drawable.icon)
.setTitle("[" + file.getName() + "] folder can't be read!")
.setPositiveButton("OK",
new DialogInterface.OnClickListener() {

@Override
public void onClick(DialogInterface dialog, int which) {
// TODO Auto-generated method stub
}
}).show();
}
}
else
{
exifAttribute = null;
filename = file.getName();
String ext = filename.substring(filename.lastIndexOf('.')+1, filename.length());

if(ext.equals("JPG")||ext.equals("jpg"))
{
try {
ExifInterface exif = new ExifInterface(file.toString());
exifAttribute = getExif(exif);
} catch (IOException e) {
// TODO Auto-generated catch block
;
}
jpgFile = file;
showDialog(ID_JPGDIALOG);
}
else{
new AlertDialog.Builder(this)
.setIcon(R.drawable.icon)
.setTitle("[" + filename + "]")
.setMessage(exifAttribute)
.setPositiveButton("OK",
new DialogInterface.OnClickListener() {

@Override
public void onClick(DialogInterface dialog, int which) {
// TODO Auto-generated method stub
}
}).show();
}
}
}

private String getExif(ExifInterface exif)
{
String myAttribute=null;
myAttribute += getTagString(ExifInterface.TAG_DATETIME, exif);
myAttribute += getTagString(ExifInterface.TAG_FLASH, exif);
myAttribute += getTagString(ExifInterface.TAG_GPS_LATITUDE, exif);
myAttribute += getTagString(ExifInterface.TAG_GPS_LATITUDE_REF, exif);
myAttribute += getTagString(ExifInterface.TAG_GPS_LONGITUDE, exif);
myAttribute += getTagString(ExifInterface.TAG_GPS_LONGITUDE_REF, exif);
myAttribute += getTagString(ExifInterface.TAG_IMAGE_LENGTH, exif);
myAttribute += getTagString(ExifInterface.TAG_IMAGE_WIDTH, exif);
myAttribute += getTagString(ExifInterface.TAG_MAKE, exif);
myAttribute += getTagString(ExifInterface.TAG_MODEL, exif);
myAttribute += getTagString(ExifInterface.TAG_ORIENTATION, exif);
myAttribute += getTagString(ExifInterface.TAG_WHITE_BALANCE, exif);
return myAttribute;
}

private String getTagString(String tag, ExifInterface exif)
{
return(tag + " : " + exif.getAttribute(tag) + "\n");
}

@Override
protected Dialog onCreateDialog(int id) {
jpgDialog = null;;
switch(id){
case ID_JPGDIALOG:

Context mContext = this;
jpgDialog = new Dialog(mContext);

jpgDialog.setContentView(R.layout.jpgdialog);
exifText = (TextView) jpgDialog.findViewById(R.id.text);
bmImage = (ImageView)jpgDialog.findViewById(R.id.image);
bmOptions = new BitmapFactory.Options();
bmOptions.inSampleSize = 2;

Button okDialogButton = (Button)jpgDialog.findViewById(R.id.okdialogbutton);
okDialogButton.setOnClickListener(okDialogButtonOnClickListener);

break;
default:
break;
}
return jpgDialog;
}

@Override
protected void onPrepareDialog(int id, Dialog dialog) {
// TODO Auto-generated method stub

switch(id){
case ID_JPGDIALOG:
dialog.setTitle("[" + filename + "]");
exifText.setText(exifAttribute);
Bitmap bm = BitmapFactory.decodeFile(jpgFile.getPath(), bmOptions);
bmImage.setImageBitmap(bm);

break;
default:
break;
}
}

private Button.OnClickListener okDialogButtonOnClickListener
= new Button.OnClickListener(){

@Override
public void onClick(View v) {
// TODO Auto-generated method stub
jpgDialog.dismiss();
}
};
}


Download the files.

Related Article:
- Update GPS TAG, using ExifInterface.setAttribute() and exifInterface.saveAttributes()

7 comments:

k420 said...

Great posts on the jpeg work. Do you know if its possible to write to the tags as well as read them like you're doing?

Android Er said...

hi k420: I also tried to write the Geo tags back to Exif, but fail!!!

If you know how, pls let me know. Thx:)

Android Er said...

Ref: Update GPS TAG, using ExifInterface.setAttribute() and exifInterface.saveAttributes()

Vikas Patel said...

Can we add exif information to Bitmap or, Byte array output stream (after compressing it)?

Android Er said...

Hello Vikas Patel

add exif to Bitmap? In my understanding, there are no exif for bitmap.

If you are talking about jpg, you can read this post: Update GPS TAG, using ExifInterface.setAttribute() and exifInterface.saveAttributes()

Shinta Puspita Sari said...

how to get exif from png file? because i use that code did'nt work.Pleas Help :(

Android Er said...

Hello Shinta Puspita Sari,

Exif for jpg only, no Exif on PNG format.
