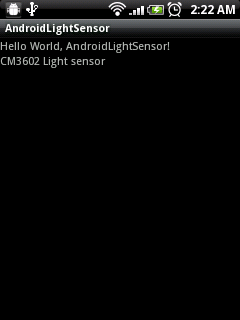

Get Light Sensor of Android device

package com.exercise.AndroidLightSensor;

import android.app.Activity;
import android.content.Context;
import android.hardware.Sensor;
import android.hardware.SensorManager;
import android.os.Bundle;
import android.widget.TextView;

public class AndroidLightSensor extends Activity {

SensorManager mySensorManager;
Sensor myLightSensor;

 /** Called when the activity is first created. */
 @Override
 public void onCreate(Bundle savedInstanceState) {

     super.onCreate(savedInstanceState);
     setContentView(R.layout.main);
     TextView textLightSensor = (TextView)findViewById(R.id.lightsensor);

     mySensorManager = (SensorManager)getSystemService(Context.SENSOR_SERVICE);
     myLightSensor = mySensorManager.getDefaultSensor(Sensor.TYPE_LIGHT);

     if (myLightSensor == null){
      textLightSensor.setText("No Light Sensor!");
     }else{
      textLightSensor.setText(myLightSensor.getName());
     }
 }
}

layout

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 >
<TextView
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:text="@string/hello"
 />
<TextView
 android:id="@+id/lightsensor"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 />
</LinearLayout>

Download the files.

Next:
- Implement SensorEventListener to monitor Android light sensor

Android 3.0 Platform Preview and Updated SDK Tools is available

Note that applications developed with the Android 3.0 Platform Preview cannot be published on Android Market. We’ll be releasing a final SDK in the weeks ahead that you can use to build and publish applications for Android 3.0.

Here are some of the highlights of Android 3.0 SDK Preview:

UI framework for creating great apps for larger screen devices: Developers can use a new UI components, new themes, richer widgets and notifications, drag and drop, and other new features to create rich and engaging apps for users on larger screen devices.

High-performance 2D and 3D graphics: A new property-based animation framework lets developers add great visual effects to their apps. A built-in GL renderer lets developers request hardware-acceleration of common 2D rendering operations in their apps, across the entire app or only in specific activities or views. For adding rich 3D scenes, developers take advantage of a new 3D graphics engine called Renderscript.

Support for multicore processor architectures: Android 3.0 is optimized to run on either single- or dual-core processors, so that applications run with the best possible performance.

Rich multimedia: New multimedia features such as HTTP Live streaming support, a pluggable DRM framework, and easy media file transfer through MTP/PTP, give developers new ways to bring rich content to users.

New types of connectivity: New APIs for Bluetooth A2DP and HSP let applications offer audio streaming and headset control. Support for Bluetooth insecure socket connection lets applications connect to simple devices that may not have a user interface.

Enhancements for enterprise: New administrative policies, such as for encrypted storage and password expiration, help enterprise administrators manage devices more effectively.

For an complete overview of the new user and developer features, see the Android 3.0 Platform Highlights.

Additionally, we are releasing updates to our SDK Tools (r9), NDK (r5b), and ADT Plugin for Eclipse (9.0.0). Key features include:

• UI Builder improvements in the ADT Plugin:
  • Improved drag-and-drop in the editor, with better support for included layouts.
  • In-editor preview of objects animated with the new animation framework.
  • Visualization of UI based on any version of the platform. independent of project target. Improved rendering, with better support for custom views.

To find out how to get started developing or testing applications using the Android 3.0 Preview SDK, see the Preview SDK Introduction. Details about the changes in the latest versions of the tools are available on the SDK Tools, the ADT Plugin, and NDK pages on the site.

Source: http://android-developers.blogspot.com/2011/01/android-30-platform-preview-and-updated.html

Use getSharedPreferences() to retrieve a preferences object shared across multiple activity

Last exercise "Example of using SharedPreferences.Editor" get SharedPreferences object using the method getPreferences(), it allow accessing preferences associated with the activity. To use preferences that are shared across multiple application components (activities, receivers, services, providers), you can use the underlying Context.getSharedPreferences() method to retrieve a preferences object stored under a specific name.



In this exercise, SharedPreferences is saved in main activity, it can be retrieved in the second activity.

Main activity, AndroidSharedPreferencesEditor.java

package com.exercise.AndroidSharedPreferencesEditor;

import android.app.Activity;
import android.content.Intent;
import android.content.SharedPreferences;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;

public class AndroidSharedPreferencesEditor extends Activity {

 EditText editText1, editText2;
 TextView textSavedMem1, textSavedMem2;
 Button buttonSaveMem1, buttonSaveMem2;

   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);

       textSavedMem1 = (TextView)findViewById(R.id.savedmem1);
       textSavedMem2 = (TextView)findViewById(R.id.savedmem2);
       editText1 = (EditText)findViewById(R.id.edittext1);
       editText2 = (EditText)findViewById(R.id.edittext2);
       buttonSaveMem1 = (Button)findViewById(R.id.save_mem1);
       buttonSaveMem2 = (Button)findViewById(R.id.save_mem2);

       buttonSaveMem1.setOnClickListener(buttonSaveMem1OnClickListener);
       buttonSaveMem2.setOnClickListener(buttonSaveMem2OnClickListener);

       Button buttonStartAnother = (Button)findViewById(R.id.startanother);
       buttonStartAnother.setOnClickListener(new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    Intent intent = new Intent();
             intent.setClass(AndroidSharedPreferencesEditor.this, another.class);
             startActivity(intent);
   }});

       LoadPreferences();
   }



   Button.OnClickListener buttonSaveMem1OnClickListener
    = new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    SavePreferences("MEM1", editText1.getText().toString());
    LoadPreferences();
   }

   };

   Button.OnClickListener buttonSaveMem2OnClickListener
  = new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    SavePreferences("MEM2", editText2.getText().toString());
    LoadPreferences();
   }

   };

   private void SavePreferences(String key, String value){
    SharedPreferences sharedPreferences = getSharedPreferences("MY_SHARED_PREF", MODE_PRIVATE);
    SharedPreferences.Editor editor = sharedPreferences.edit();
    editor.putString(key, value);
    editor.commit();
   }

   private void LoadPreferences(){
    SharedPreferences sharedPreferences = getSharedPreferences("MY_SHARED_PREF", MODE_PRIVATE);
    String strSavedMem1 = sharedPreferences.getString("MEM1", "");
    String strSavedMem2 = sharedPreferences.getString("MEM2", "");
    textSavedMem1.setText(strSavedMem1);
    textSavedMem2.setText(strSavedMem2);
   }
}

layout for main activity, main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="@string/hello"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Saved Mem 1:"
   />
<TextView
   android:id="@+id/savedmem1"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Saved Mem 2:"
   />
<TextView
   android:id="@+id/savedmem2"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<EditText
   android:id="@+id/edittext1"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<Button
   android:id="@+id/save_mem1"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:text="Save Mem 1"
   />
<EditText
   android:id="@+id/edittext2"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<Button
   android:id="@+id/save_mem2"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:text="Save Mem 2"
   />
<Button
   android:id="@+id/startanother"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Start Another"
   />
</LinearLayout>

The second activity, another.java

package com.exercise.AndroidSharedPreferencesEditor;

import android.app.Activity;
import android.content.SharedPreferences;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

public class another extends Activity {

 @Override
 protected void onCreate(Bundle savedInstanceState) {
  // TODO Auto-generated method stub
  super.onCreate(savedInstanceState);
  setContentView(R.layout.anothermain);

  TextView textSavedMem1 = (TextView)findViewById(R.id.savedmem1);
       TextView textSavedMem2 = (TextView)findViewById(R.id.savedmem2);

       SharedPreferences sharedPreferences = getSharedPreferences("MY_SHARED_PREF", MODE_PRIVATE);
    String strSavedMem1 = sharedPreferences.getString("MEM1", "");
    String strSavedMem2 = sharedPreferences.getString("MEM2", "");
    textSavedMem1.setText(strSavedMem1);
    textSavedMem2.setText(strSavedMem2);

    Button buttonFinish = (Button)findViewById(R.id.finish);
    buttonFinish.setOnClickListener(new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    finish();
   }});
 }
}

layout for the second activity, anothermain.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="The Another Activity"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Saved Mem 1:"
   />
<TextView
   android:id="@+id/savedmem1"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Saved Mem 2:"
   />
<TextView
   android:id="@+id/savedmem2"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<Button
   android:id="@+id/finish"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Finish"
   />
</LinearLayout>

Modify AndroidManifest.xml to incude another.java.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
     package="com.exercise.AndroidSharedPreferencesEditor"
     android:versionCode="1"
     android:versionName="1.0">
   <application android:icon="@drawable/icon" android:label="@string/app_name">
       <activity android:name=".AndroidSharedPreferencesEditor"
                 android:label="@string/app_name">
           <intent-filter>
               <action android:name="android.intent.action.MAIN" />
               <category android:name="android.intent.category.LAUNCHER" />
           </intent-filter>
       </activity>
  <activity android:name=".another" />
   </application>
   <uses-sdk android:minSdkVersion="4" />

</manifest>

Download the files.

Related:
- SharedPreferences.Editor for RadioButton in RadioGroup

Example of using SharedPreferences.Editor

main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="@string/hello"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Saved Mem 1:"
   />
<TextView
   android:id="@+id/savedmem1"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Saved Mem 2:"
   />
<TextView
   android:id="@+id/savedmem2"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<EditText
   android:id="@+id/edittext1"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<Button
   android:id="@+id/save_mem1"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:text="Save Mem 1"
   />
<EditText
   android:id="@+id/edittext2"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<Button
   android:id="@+id/save_mem2"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:text="Save Mem 2"
   />
</LinearLayout>

AndroidSharedPreferencesEditor.java

package com.exercise.AndroidSharedPreferencesEditor;

import android.app.Activity;
import android.content.SharedPreferences;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;

public class AndroidSharedPreferencesEditor extends Activity {

EditText editText1, editText2;
TextView textSavedMem1, textSavedMem2;
Button buttonSaveMem1, buttonSaveMem2;

   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);

       textSavedMem1 = (TextView)findViewById(R.id.savedmem1);
       textSavedMem2 = (TextView)findViewById(R.id.savedmem2);
       editText1 = (EditText)findViewById(R.id.edittext1);
       editText2 = (EditText)findViewById(R.id.edittext2);
       buttonSaveMem1 = (Button)findViewById(R.id.save_mem1);
       buttonSaveMem2 = (Button)findViewById(R.id.save_mem2);

       buttonSaveMem1.setOnClickListener(buttonSaveMem1OnClickListener);
       buttonSaveMem2.setOnClickListener(buttonSaveMem2OnClickListener);

       LoadPreferences();
   }

   Button.OnClickListener buttonSaveMem1OnClickListener
    = new Button.OnClickListener(){

  @Override
  public void onClick(View arg0) {
   // TODO Auto-generated method stub
   SavePreferences("MEM1", editText1.getText().toString());
   LoadPreferences();
  }

   };

   Button.OnClickListener buttonSaveMem2OnClickListener
 = new Button.OnClickListener(){

  @Override
  public void onClick(View arg0) {
   // TODO Auto-generated method stub
   SavePreferences("MEM2", editText2.getText().toString());
   LoadPreferences();
  }

   };

   private void SavePreferences(String key, String value){
    SharedPreferences sharedPreferences = getPreferences(MODE_PRIVATE);
    SharedPreferences.Editor editor = sharedPreferences.edit();
    editor.putString(key, value);
    editor.commit();
   }

   private void LoadPreferences(){
    SharedPreferences sharedPreferences = getPreferences(MODE_PRIVATE);
    String strSavedMem1 = sharedPreferences.getString("MEM1", "");
    String strSavedMem2 = sharedPreferences.getString("MEM2", "");
    textSavedMem1.setText(strSavedMem1);
    textSavedMem2.setText(strSavedMem2);
   }
}

Download the files.

Related Article:
- Use getSharedPreferences() to retrieve a preferences object to shared across multiple activity

Turn Wifi On/Off using WifiManager.setWifiEnabled()

Last exercise show how to "Detect Wifi ON/OFF state", this exercise show how to Turn Wifi On and Off.



To Turn Wifi On/Off, WifiManager.setWifiEnabled() can be used.

First of off, modify main.xml to add to button.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="@string/hello"
   />
<TextView
   android:id="@+id/wifistate"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<Button
   android:id="@+id/onwifi"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Turn Wifi On"
   />
<Button
   android:id="@+id/offwifi"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Turn Wifi Off"
   />
</LinearLayout>

Modify the code to call WifiManager.setWifiEnabled().

package com.exercise.AndroidWifiStateChangedDetect;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

public class AndroidWifiStateChangedDetect extends Activity {

 TextView WifiState;

   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);
       WifiState = (TextView)findViewById(R.id.wifistate);
       Button OnWifi = (Button)findViewById(R.id.onwifi);
       Button OffWifi = (Button)findViewById(R.id.offwifi);

       this.registerReceiver(this.WifiStateChangedReceiver,
               new IntentFilter(WifiManager.WIFI_STATE_CHANGED_ACTION));

       OnWifi.setOnClickListener(new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    WifiManager wifiManager = (WifiManager)getBaseContext().getSystemService(Context.WIFI_SERVICE);
    wifiManager.setWifiEnabled(true);
   }});

       OffWifi.setOnClickListener(new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    WifiManager wifiManager = (WifiManager)getBaseContext().getSystemService(Context.WIFI_SERVICE);
    wifiManager.setWifiEnabled(false);
   }});
   }

   private BroadcastReceiver WifiStateChangedReceiver
   = new BroadcastReceiver(){

  @Override
  public void onReceive(Context context, Intent intent) {
   // TODO Auto-generated method stub

   int extraWifiState = intent.getIntExtra(WifiManager.EXTRA_WIFI_STATE ,
     WifiManager.WIFI_STATE_UNKNOWN);

   switch(extraWifiState){
   case WifiManager.WIFI_STATE_DISABLED:
    WifiState.setText("WIFI STATE DISABLED");
    break;
   case WifiManager.WIFI_STATE_DISABLING:
    WifiState.setText("WIFI STATE DISABLING");
    break;
   case WifiManager.WIFI_STATE_ENABLED:
    WifiState.setText("WIFI STATE ENABLED");
    break;
   case WifiManager.WIFI_STATE_ENABLING:
    WifiState.setText("WIFI STATE ENABLING");
    break;
   case WifiManager.WIFI_STATE_UNKNOWN:
    WifiState.setText("WIFI STATE UNKNOWN");
    break;
   }

  }};
}

In order to change Wifi state, we have to grant permission of "android.permission.CHANGE_WIFI_STATE".
AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
     package="com.exercise.AndroidWifiStateChangedDetect"
     android:versionCode="1"
     android:versionName="1.0">
   <application android:icon="@drawable/icon" android:label="@string/app_name">
       <activity android:name=".AndroidWifiStateChangedDetect"
                 android:label="@string/app_name">
           <intent-filter>
               <action android:name="android.intent.action.MAIN" />
               <category android:name="android.intent.category.LAUNCHER" />
           </intent-filter>
       </activity>

   </application>
   <uses-sdk android:minSdkVersion="4" />
   <uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
</manifest>

Download the files.

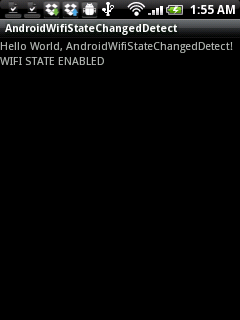

Detect Wifi ON/OFF state

To detect Android Wifi ON/OFF (Enable/Disable) state, we can implement a BroadcastReceiver to register with the intent WifiManager.WIFI_STATE_CHANGED_ACTION. IN the BroadcastReceiver, the Wifi state can be retrieved using the code intent.getIntExtra(WifiManager.EXTRA_WIFI_STATE, WifiManager.WIFI_STATE_UNKNOWN).

package com.exercise.AndroidWifiStateChangedDetect;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.widget.TextView;

public class AndroidWifiStateChangedDetect extends Activity {

TextView WifiState;

  /** Called when the activity is first created. */
  @Override
  public void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.main);
      WifiState = (TextView)findViewById(R.id.wifistate);

      this.registerReceiver(this.WifiStateChangedReceiver,
              new IntentFilter(WifiManager.WIFI_STATE_CHANGED_ACTION));
  }

  private BroadcastReceiver WifiStateChangedReceiver
  = new BroadcastReceiver(){

 @Override
 public void onReceive(Context context, Intent intent) {
  // TODO Auto-generated method stub

  int extraWifiState = intent.getIntExtra(WifiManager.EXTRA_WIFI_STATE ,
    WifiManager.WIFI_STATE_UNKNOWN);

  switch(extraWifiState){
  case WifiManager.WIFI_STATE_DISABLED:
   WifiState.setText("WIFI STATE DISABLED");
   break;
  case WifiManager.WIFI_STATE_DISABLING:
   WifiState.setText("WIFI STATE DISABLING");
   break;
  case WifiManager.WIFI_STATE_ENABLED:
   WifiState.setText("WIFI STATE ENABLED");
   break;
  case WifiManager.WIFI_STATE_ENABLING:
   WifiState.setText("WIFI STATE ENABLING");
   break;
  case WifiManager.WIFI_STATE_UNKNOWN:
   WifiState.setText("WIFI STATE UNKNOWN");
   break;
  }

 }};
}

Download the files.

Related:

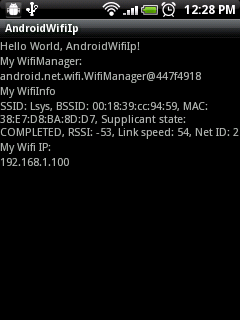

- Get Wifi IP of Android device, using WifiManager
- Monitor Wifi status and information with BroadcastReceiver
- Check RSSI by monitoring of WifiManager.RSSI_CHANGED_ACTION
- Turn Wifi On/Off using WifiManager.setWifiEnabled()

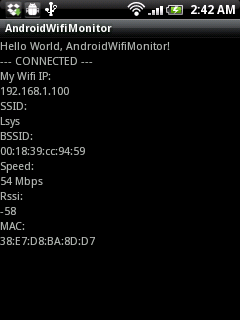

Check RSSI by monitoring of WifiManager.RSSI_CHANGED_ACTION

In last exercise, the app "Monitor Wifi status and information with BroadcastReceiver" by monitoring of ConnectivityManager.CONNECTIVITY_ACTION, it will be broadcasted when change in network connectivity has occurred; connection has either been established or lost. In case of RSSI change will not trigger the event.

In order to monitor RSSI change, we have to monitor WifiManager.RSSI_CHANGED_ACTION. In this exercise, another BroadcastReceiver, myRssiChangeReceiver, will be implemented to monitor the broadcast of WifiManager.RSSI_CHANGED_ACTION, to update RSSI if any change.

Modify AndroidWifiMonitor.java only, the other files are same as last exercise "Monitor Wifi status and information with BroadcastReceiver".

package com.exercise.AndroidWifiMonitor;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.net.ConnectivityManager;
import android.net.NetworkInfo;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.widget.TextView;

public class AndroidWifiMonitor extends Activity {

TextView textConnected, textIp, textSsid, textBssid, textMac, textSpeed, textRssi;

 /** Called when the activity is first created. */
 @Override
 public void onCreate(Bundle savedInstanceState) {
     super.onCreate(savedInstanceState);
     setContentView(R.layout.main);

     textConnected = (TextView)findViewById(R.id.Connected);
     textIp = (TextView)findViewById(R.id.Ip);

     textSsid = (TextView)findViewById(R.id.Ssid);
     textBssid = (TextView)findViewById(R.id.Bssid);
     textMac = (TextView)findViewById(R.id.Mac);
     textSpeed = (TextView)findViewById(R.id.Speed);
     textRssi = (TextView)findViewById(R.id.Rssi);

     DisplayWifiState();

     this.registerReceiver(this.myWifiReceiver,
       new IntentFilter(ConnectivityManager.CONNECTIVITY_ACTION));

     this.registerReceiver(this.myRssiChangeReceiver,
       new IntentFilter(WifiManager.RSSI_CHANGED_ACTION));

 }

 private BroadcastReceiver myRssiChangeReceiver
 = new BroadcastReceiver(){

 @Override
 public void onReceive(Context arg0, Intent arg1) {
  // TODO Auto-generated method stub
  int newRssi = arg1.getIntExtra(WifiManager.EXTRA_NEW_RSSI, 0);
  textRssi.setText(String.valueOf(newRssi));
 }};

 private BroadcastReceiver myWifiReceiver
 = new BroadcastReceiver(){

 @Override
 public void onReceive(Context arg0, Intent arg1) {
  // TODO Auto-generated method stub
  NetworkInfo networkInfo = (NetworkInfo) arg1.getParcelableExtra(ConnectivityManager.EXTRA_NETWORK_INFO);
  if(networkInfo.getType() == ConnectivityManager.TYPE_WIFI){
   DisplayWifiState();
  }
 }};

 private void DisplayWifiState(){

  ConnectivityManager myConnManager = (ConnectivityManager) getSystemService(CONNECTIVITY_SERVICE);
  NetworkInfo myNetworkInfo = myConnManager.getNetworkInfo(ConnectivityManager.TYPE_WIFI);
  WifiManager myWifiManager = (WifiManager)getSystemService(Context.WIFI_SERVICE);
 WifiInfo myWifiInfo = myWifiManager.getConnectionInfo();

 textMac.setText(myWifiInfo.getMacAddress());

  if (myNetworkInfo.isConnected()){
   int myIp = myWifiInfo.getIpAddress();

   textConnected.setText("--- CONNECTED ---");

   int intMyIp3 = myIp/0x1000000;
   int intMyIp3mod = myIp%0x1000000;

   int intMyIp2 = intMyIp3mod/0x10000;
   int intMyIp2mod = intMyIp3mod%0x10000;

   int intMyIp1 = intMyIp2mod/0x100;
   int intMyIp0 = intMyIp2mod%0x100;

   textIp.setText(String.valueOf(intMyIp0)
     + "." + String.valueOf(intMyIp1)
     + "." + String.valueOf(intMyIp2)
     + "." + String.valueOf(intMyIp3)
     );

   textSsid.setText(myWifiInfo.getSSID());
   textBssid.setText(myWifiInfo.getBSSID());

   textSpeed.setText(String.valueOf(myWifiInfo.getLinkSpeed()) + " " + WifiInfo.LINK_SPEED_UNITS);
   textRssi.setText(String.valueOf(myWifiInfo.getRssi()));
  }
  else{
   textConnected.setText("--- DIS-CONNECTED! ---");
   textIp.setText("---");
   textSsid.setText("---");
   textBssid.setText("---");
   textSpeed.setText("---");
   textRssi.setText("---");
  }

 }
}

Download the files.

Related Article:
- Detect Wifi ON/OFF state

Monitor Wifi status and information with BroadcastReceiver

Monitor Wifi status and information with BroadcastReceiver

Last exercise show how to "Get Wifi IP using WifiManager". This exercise it will be further extended to monitor Wifi Connectivity status, and show more information also; such as SSID, BSSID, Speed, Rssi and MAC address.



In order to monitor the Wifi Connectivity status, we have to implement a BroadcastReceiver to receive "ConnectivityManager.CONNECTIVITY_ACTION" intent.
AndroidWifiMonitor.java

package com.exercise.AndroidWifiMonitor;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.net.ConnectivityManager;
import android.net.NetworkInfo;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.widget.TextView;

public class AndroidWifiMonitor extends Activity {

 TextView textConnected, textIp, textSsid, textBssid, textMac, textSpeed, textRssi;

   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);

       textConnected = (TextView)findViewById(R.id.Connected);
       textIp = (TextView)findViewById(R.id.Ip);

       textSsid = (TextView)findViewById(R.id.Ssid);
       textBssid = (TextView)findViewById(R.id.Bssid);
       textMac = (TextView)findViewById(R.id.Mac);
       textSpeed = (TextView)findViewById(R.id.Speed);
       textRssi = (TextView)findViewById(R.id.Rssi);

       DisplayWifiState();

       this.registerReceiver(this.myWifiReceiver,
         new IntentFilter(ConnectivityManager.CONNECTIVITY_ACTION));

   }

   private BroadcastReceiver myWifiReceiver
   = new BroadcastReceiver(){

  @Override
  public void onReceive(Context arg0, Intent arg1) {
   // TODO Auto-generated method stub
   NetworkInfo networkInfo = (NetworkInfo) arg1.getParcelableExtra(ConnectivityManager.EXTRA_NETWORK_INFO);
   if(networkInfo.getType() == ConnectivityManager.TYPE_WIFI){
    DisplayWifiState();
   }
  }};

   private void DisplayWifiState(){

    ConnectivityManager myConnManager = (ConnectivityManager) getSystemService(CONNECTIVITY_SERVICE);
    NetworkInfo myNetworkInfo = myConnManager.getNetworkInfo(ConnectivityManager.TYPE_WIFI);
    WifiManager myWifiManager = (WifiManager)getSystemService(Context.WIFI_SERVICE);
  WifiInfo myWifiInfo = myWifiManager.getConnectionInfo();

  textMac.setText(myWifiInfo.getMacAddress());

    if (myNetworkInfo.isConnected()){
     int myIp = myWifiInfo.getIpAddress();

     textConnected.setText("--- CONNECTED ---");

     int intMyIp3 = myIp/0x1000000;
     int intMyIp3mod = myIp%0x1000000;

     int intMyIp2 = intMyIp3mod/0x10000;
     int intMyIp2mod = intMyIp3mod%0x10000;

     int intMyIp1 = intMyIp2mod/0x100;
     int intMyIp0 = intMyIp2mod%0x100;

     textIp.setText(String.valueOf(intMyIp0)
       + "." + String.valueOf(intMyIp1)
       + "." + String.valueOf(intMyIp2)
       + "." + String.valueOf(intMyIp3)
       );

     textSsid.setText(myWifiInfo.getSSID());
     textBssid.setText(myWifiInfo.getBSSID());

     textSpeed.setText(String.valueOf(myWifiInfo.getLinkSpeed()) + " " + WifiInfo.LINK_SPEED_UNITS);
     textRssi.setText(String.valueOf(myWifiInfo.getRssi()));
    }
    else{
     textConnected.setText("--- DIS-CONNECTED! ---");
     textIp.setText("---");
     textSsid.setText("---");
     textBssid.setText("---");
     textSpeed.setText("---");
     textRssi.setText("---");
    }

   }
}

Modify AndroidManifest.xml to add permission of ACCESS_WIFI_STATE and ACCESS_NETWORK_STATE.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
     package="com.exercise.AndroidWifiMonitor"
     android:versionCode="1"
     android:versionName="1.0">
   <application android:icon="@drawable/icon" android:label="@string/app_name">
       <activity android:name=".AndroidWifiMonitor"
                 android:label="@string/app_name">
           <intent-filter>
               <action android:name="android.intent.action.MAIN" />
               <category android:name="android.intent.category.LAUNCHER" />
           </intent-filter>
       </activity>
   </application>
   <uses-sdk android:minSdkVersion="4" />
 <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
 <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
</manifest>

main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="@string/hello"
   />

<TextView
   android:id="@+id/Connected"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="My Wifi IP:"
   />
<TextView
   android:id="@+id/Ip"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="SSID:"
   />
<TextView
   android:id="@+id/Ssid"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="BSSID:"
   />
<TextView
   android:id="@+id/Bssid"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Speed:"
   />
<TextView
   android:id="@+id/Speed"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Rssi:"
   />
<TextView
   android:id="@+id/Rssi"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="MAC:"
   />
<TextView
   android:id="@+id/Mac"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
</LinearLayout>

Download the files.

This exercise, the app "Monitor Wifi status and information with BroadcastReceiver" by monitoring of ConnectivityManager.CONNECTIVITY_ACTION, it will be broadcasted when change in network connectivity has occurred; connection has either been established or lost.

In case of RSSI change will not trigger the event. To detect RSSI change, refer to another article "Check RSSI by monitoring of WifiManager.RSSI_CHANGED_ACTION".

Get Wifi IP of Android device, using WifiManager

It's a simple exercise to retrieve my Wifi Ip address using WifiManager.



main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="@string/hello"
   />

<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="My WifiManager:"
   />
<TextView
   android:id="@+id/WifiManager"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="My WifiInfo"
   />
<TextView
   android:id="@+id/WifiInfo"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="My Wifi IP:"
   />
<TextView
   android:id="@+id/Ip"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
</LinearLayout>

AndroidWifiIp.java

package com.exercise.AndroidWifiIp;

import android.app.Activity;
import android.content.Context;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.widget.TextView;

public class AndroidWifiIp extends Activity {
   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);
       TextView textWifiManager = (TextView)findViewById(R.id.WifiManager);
       TextView textWifiInfo = (TextView)findViewById(R.id.WifiInfo);
       TextView textIp = (TextView)findViewById(R.id.Ip);

       WifiManager myWifiManager = (WifiManager)getSystemService(Context.WIFI_SERVICE);

       WifiInfo myWifiInfo = myWifiManager.getConnectionInfo();
       int myIp = myWifiInfo.getIpAddress();

       textWifiManager.setText(myWifiManager.toString());
       textWifiInfo.setText(myWifiInfo.toString());

       int intMyIp3 = myIp/0x1000000;
       int intMyIp3mod = myIp%0x1000000;

       int intMyIp2 = intMyIp3mod/0x10000;
       int intMyIp2mod = intMyIp3mod%0x10000;

       int intMyIp1 = intMyIp2mod/0x100;
       int intMyIp0 = intMyIp2mod%0x100;

       textIp.setText(String.valueOf(intMyIp0)
         + "." + String.valueOf(intMyIp1)
         + "." + String.valueOf(intMyIp2)
         + "." + String.valueOf(intMyIp3)
         );
   }
}

Also have to modify AndroidManifest.xml to grant permission of android.permission.ACCESS_WIFI_STATE.

 <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />

Download the files.

Related article: Monitor Wifi status and information with BroadcastReceiver

ListActivity and onListItemClick()

ListActivity is an activity that displays a list of items by binding to a data source such as an array or Cursor, and exposes event handlers when the user selects an item.



protected void onListItemClick(ListView l, View v, int position, long id)
This method will be called when an item in the list is selected. Subclasses should override. Subclasses can call getListView().getItemAtPosition(position) if they need to access the data associated with the selected item.
Parameters
l: The ListView where the click happened
v: The view that was clicked within the ListView
position: The position of the view in the list
id: The row id of the item that was clicked

package com.exercise.AndroidOnListItemClick;

import android.app.AlertDialog;
import android.app.ListActivity;
import android.content.DialogInterface;
import android.os.Bundle;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;

public class AndroidOnListItemClick extends ListActivity {

 static final String[] COUNTRIES = new String[] {
   "Afghanistan", "Albania", "Algeria", "American Samoa",
   "Andorra", "Angola", "Anguilla", "Antarctica",
   "Antigua and Barbuda", "Argentina", "Armenia", "Aruba",
   "Australia", "Austria", "Azerbaijan", "Bahrain",
   "Bangladesh", "Barbados", "Belarus", "Belgium", "Belize",
   "Benin", "Bermuda", "Bhutan", "Bolivia",
   "Bosnia and Herzegovina", "Botswana", "Bouvet Island",
   "Brazil", "British Indian Ocean Territory",
   "British Virgin Islands", "Brunei", "Bulgaria",
   "Burkina Faso", "Burundi", "Cote d'Ivoire", "Cambodia",
   "Cameroon", "Canada", "Cape Verde", "Cayman Islands",
   "Central African Republic", "Chad", "Chile", "China",
   "Christmas Island", "Cocos (Keeling) Islands", "Colombia",
   "Comoros", "Congo", "Cook Islands", "Costa Rica", "Croatia",
   "Cuba", "Cyprus", "Czech Republic",
   "Democratic Republic of the Congo", "Denmark", "Djibouti",
   "Dominica", "Dominican Republic", "East Timor", "Ecuador",
   "Egypt", "El Salvador", "Equatorial Guinea", "Eritrea",
   "Estonia", "Ethiopia", "Faeroe Islands", "Falkland Islands",
   "Fiji", "Finland", "Former Yugoslav Republic of Macedonia",
   "France", "French Guiana", "French Polynesia",
   "French Southern Territories", "Gabon", "Georgia", "Germany",
   "Ghana", "Gibraltar", "Greece", "Greenland", "Grenada",
   "Guadeloupe", "Guam", "Guatemala", "Guinea", "Guinea-Bissau",
   "Guyana", "Haiti", "Heard Island and McDonald Islands",
   "Honduras", "Hong Kong", "Hungary", "Iceland", "India",
   "Indonesia", "Iran", "Iraq", "Ireland", "Israel", "Italy",
   "Jamaica", "Japan", "Jordan", "Kazakhstan", "Kenya", "Kiribati",
   "Kuwait", "Kyrgyzstan", "Laos", "Latvia", "Lebanon", "Lesotho",
   "Liberia", "Libya", "Liechtenstein", "Lithuania", "Luxembourg",
   "Macau", "Madagascar", "Malawi", "Malaysia", "Maldives", "Mali",
   "Malta", "Marshall Islands", "Martinique", "Mauritania",
   "Mauritius", "Mayotte", "Mexico", "Micronesia", "Moldova",
   "Monaco", "Mongolia", "Montserrat", "Morocco", "Mozambique",
   "Myanmar", "Namibia", "Nauru", "Nepal", "Netherlands",
   "Netherlands Antilles", "New Caledonia", "New Zealand",
   "Nicaragua", "Niger", "Nigeria", "Niue", "Norfolk Island",
   "North Korea", "Northern Marianas", "Norway", "Oman", "Pakistan",
   "Palau", "Panama", "Papua New Guinea", "Paraguay", "Peru",
   "Philippines", "Pitcairn Islands", "Poland", "Portugal",
   "Puerto Rico", "Qatar", "Reunion", "Romania", "Russia", "Rwanda",
   "Sqo Tome and Principe", "Saint Helena", "Saint Kitts and Nevis",
   "Saint Lucia", "Saint Pierre and Miquelon",
   "Saint Vincent and the Grenadines", "Samoa", "San Marino",
   "Saudi Arabia", "Senegal", "Seychelles", "Sierra Leone",
   "Singapore", "Slovakia", "Slovenia", "Solomon Islands", "Somalia",
   "South Africa", "South Georgia and the South Sandwich Islands",
   "South Korea", "Spain", "Sri Lanka", "Sudan", "Suriname",
   "Svalbard and Jan Mayen", "Swaziland", "Sweden", "Switzerland",
   "Syria", "Taiwan", "Tajikistan", "Tanzania", "Thailand",
   "The Bahamas", "The Gambia", "Togo", "Tokelau", "Tonga",
   "Trinidad and Tobago", "Tunisia", "Turkey", "Turkmenistan",
   "Turks and Caicos Islands", "Tuvalu", "Virgin Islands", "Uganda",
   "Ukraine", "United Arab Emirates", "United Kingdom",
   "United States", "United States Minor Outlying Islands",
   "Uruguay", "Uzbekistan", "Vanuatu", "Vatican City", "Venezuela",
   "Vietnam", "Wallis and Futuna", "Western Sahara", "Yemen",
   "Yugoslavia", "Zambia", "Zimbabwe"
   };

   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setListAdapter(new ArrayAdapter<String>(this,
               android.R.layout.simple_list_item_1, COUNTRIES));
       getListView().setTextFilterEnabled(true);
   }

 @Override
 protected void onListItemClick(ListView l, View v, int position, long id) {
  // TODO Auto-generated method stub
  super.onListItemClick(l, v, position, id);

  new AlertDialog.Builder(this)
   .setTitle("Hello")
   .setMessage("from " + getListView().getItemAtPosition(position))
   .setPositiveButton("OK",
     new DialogInterface.OnClickListener() {
      public void onClick(DialogInterface dialog, int which) {}}
     )
   .show();

  Toast.makeText(AndroidOnListItemClick.this,
    "ListView: " + l.toString() + "\n" +
    "View: " + v.toString() + "\n" +
    "position: " + String.valueOf(position) + "\n" +
    "id: " + String.valueOf(id),
    Toast.LENGTH_LONG).show();
 }


}

Download the files.

Pass attributes to custom Button

In this exercise, a custom Button class with custom attributes will be implemented. It show how to define custom attributes, and how to define the attributes values in main.xml.



First of all, create a attrs.xml in /xml/values/ folder. It define our declare-styleable attributes.

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <declare-styleable name="style_Button">
        <attr name="myText_1" format="string" />
        <attr name="myText_2" format="string" />
    </declare-styleable>
</resources>

Create a new class StyleButton.java, it is our custom Button.
Override the constructor to retrieve the attributes, initStyleButton() method show how to obtain styled attributes via TypedArray. Be sure to call recycle() when done with them.

package com.exercise.AndroidStyleButton;

import android.content.Context;
import android.content.res.TypedArray;
import android.util.AttributeSet;
import android.widget.Button;

public class StyleButton extends Button {

 public StyleButton(Context context) {
  super(context);
  // TODO Auto-generated constructor stub
 }

 public StyleButton(Context context, AttributeSet attrs) {
  super(context, attrs);
  // TODO Auto-generated constructor stub
  initStyleButton(attrs);
 }

 public StyleButton(Context context, AttributeSet attrs, int defStyle) {
  super(context, attrs, defStyle);
  // TODO Auto-generated constructor stub
  initStyleButton(attrs);
 }

 private void initStyleButton(AttributeSet attrs){
  TypedArray a = getContext().obtainStyledAttributes(attrs,R.styleable.style_Button);
  String Text1 = a.getString(R.styleable.style_Button_myText_1);
  String Text2 = a.getString(R.styleable.style_Button_myText_2);
  setText(Text1 + "\n" + Text2);
  a.recycle();
 }

}

Finally, modify main.xml to add our custom buttons with our own attributes.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:stylebutton= "http://schemas.android.com/apk/res/com.exercise.AndroidStyleButton"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    >
<TextView
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:text="@string/hello"/>
<com.exercise.AndroidStyleButton.StyleButton
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    stylebutton:myText_1="My Text 1"
    stylebutton:myText_2="My Text 2"
    />
<com.exercise.AndroidStyleButton.StyleButton
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    stylebutton:myText_1="Hello!"
    stylebutton:myText_2="It's a Style Button:)"
    />
</LinearLayout>

Download the files.

Stable Android-x86 2.2 (Froyo-x86) released

Android-x86 is a project to port Android open source project to x86 platform. Stable Android-x86 2.2 (Froyo-x86) released. Live CD ISOs are available.

Link: http://www.android-x86.org/releases/release_2_2

The is based on the Android 2.2.1 (Froyo branch). We fixed and added many x86 specified code to let the system runs smoothly on x86 platforms, especially for netbooks or tablets. The key features contain

• Kernel 2.6.35.7 with KMS enabled. Most netbooks can run Android-x86 in the native resolution.
• Hardware OpenGL acceleration for Intel integrated graphic chipsets. It is turned on by default if the i915 driver is available. However, if you have trouble with it, you can disable it by adding HWACCEL=0 to the cmdline. (by olv from 0xlab)
• Wifi and Ethernet support. Both are configured from the GUI.
• Support 3G USB modem with auto-configuration.
• A text based GUI installer which supports ext3/ext2/ntfs/fat32 filesystems.
• The installer is improved to support read-write mode, as well as a tool to create a fake sdcard.
• Bluetooth support for builtin device and external bluetooth dongle.
• Keyboard layout is configurable. To use it, you have to install Android-x86 to harddisk and reboot after changing the setting.
• External usb drive and sdcard are auto mounted on plugging.
• Add touch features to simulate Home/Menu/Back keys, useful for touchscreen only devices.
• Add software mouse cursor. Mouse wheel is also supported.
• Compressed filesystem (squashfs).
• MirBSD Korn Shell (mksh) is added to replace android's dumb sh.
• Touchscreen calibration.
• Battery status percentage.
• AndAppStore client 1.6.8.
• Atom optimization for dalvik and bionic.

Implement a simple Socket Server in Eclipse

Implement a simple Socket Server in Eclipse

In last exercise "Simple communication using java.net.Socket", a simple client app have be implemented. Here I will implement the a simple Socket Server in Eclipse.

- In Eclipse, start a normal Java project.

- Create a new class, say MyServer.java in my case.
MyServer.java

import java.io.DataInputStream;
import java.io.DataOutputStream;
import java.io.IOException;
import java.net.ServerSocket;
import java.net.Socket;


public class MyServer {

 public static void main(String[] args){
  ServerSocket serverSocket = null;
  Socket socket = null;
  DataInputStream dataInputStream = null;
  DataOutputStream dataOutputStream = null;

  try {
   serverSocket = new ServerSocket(8888);
   System.out.println("Listening :8888");
  } catch (IOException e) {
   // TODO Auto-generated catch block
   e.printStackTrace();
  }

  while(true){
   try {
    socket = serverSocket.accept();
    dataInputStream = new DataInputStream(socket.getInputStream());
    dataOutputStream = new DataOutputStream(socket.getOutputStream());
    System.out.println("ip: " + socket.getInetAddress());
    System.out.println("message: " + dataInputStream.readUTF());
    dataOutputStream.writeUTF("Hello!");
   } catch (IOException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   }
   finally{
    if( socket!= null){
     try {
      socket.close();
     } catch (IOException e) {
      // TODO Auto-generated catch block
      e.printStackTrace();
     }
    }

    if( dataInputStream!= null){
     try {
      dataInputStream.close();
     } catch (IOException e) {
      // TODO Auto-generated catch block
      e.printStackTrace();
     }
    }

    if( dataOutputStream!= null){
     try {
      dataOutputStream.close();
     } catch (IOException e) {
      // TODO Auto-generated catch block
      e.printStackTrace();
     }
    }
   }
  }
 }
}

- Now you can run the server by clicking the Run (Green arrow) button.



- If the app of last exercise is running at the same time, this Socket Server and the Client App can communicate with each other.

(Remember to check your ip and update in "Simple communication using java.net.Socket".)


Download the files.

Simple communication using java.net.Socket

If you try it target to new version of Android, you will face the error of NetworkOnMainThreadException, refer to the post android.os.NetworkOnMainThreadException.
updated@2013-08-28

---

java.net.Socket provides a client-side TCP socket. It's a simple exercise to implement Socket communication, on Android as a client.



In the next exercises, I will implement a local Socket Server in Eclipse. Such that you can try the linking between Android device/emulator and the local socket server.

The server runs in local, so I have to know my IP, refer to last article "How to check my ip in Linux" to check your own ip. It's 192.168.1.101 in my case. Modify the code with your own ip.

socket = new Socket(< Your ip >, 8888);

package com.exercise.AndroidClient;

import java.io.DataInputStream;
import java.io.DataOutputStream;
import java.io.IOException;
import java.net.Socket;
import java.net.UnknownHostException;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;

public class AndroidClient extends Activity {

EditText textOut;
TextView textIn;

 /** Called when the activity is first created. */
 @Override
 public void onCreate(Bundle savedInstanceState) {
     super.onCreate(savedInstanceState);
     setContentView(R.layout.main);

     textOut = (EditText)findViewById(R.id.textout);
     Button buttonSend = (Button)findViewById(R.id.send);
     textIn = (TextView)findViewById(R.id.textin);
     buttonSend.setOnClickListener(buttonSendOnClickListener);
 }

 Button.OnClickListener buttonSendOnClickListener
 = new Button.OnClickListener(){

@Override
public void onClick(View arg0) {
 // TODO Auto-generated method stub
 Socket socket = null;
 DataOutputStream dataOutputStream = null;
 DataInputStream dataInputStream = null;

 try {
  socket = new Socket("192.168.1.101", 8888);
  dataOutputStream = new DataOutputStream(socket.getOutputStream());
  dataInputStream = new DataInputStream(socket.getInputStream());
  dataOutputStream.writeUTF(textOut.getText().toString());
  textIn.setText(dataInputStream.readUTF());
 } catch (UnknownHostException e) {
  // TODO Auto-generated catch block
  e.printStackTrace();
 } catch (IOException e) {
  // TODO Auto-generated catch block
  e.printStackTrace();
 }
 finally{
  if (socket != null){
   try {
    socket.close();
   } catch (IOException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   }
  }

  if (dataOutputStream != null){
   try {
    dataOutputStream.close();
   } catch (IOException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   }
  }

  if (dataInputStream != null){
   try {
    dataInputStream.close();
   } catch (IOException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   }
  }
 }
}};
}

main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 >
<TextView
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:text="@string/hello"
 />
<EditText
 android:id="@+id/textout"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 />
<Button
 android:id="@+id/send"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:text="Send"
 />
<TextView
 android:id="@+id/textin"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 />
</LinearLayout>

Also, you have to grand permission for the App to access internet, by adding the code in AndroidManifest.xml

<uses-permission android:name="android.permission.INTERNET"/>

Download the files.

Related:
- Android Server/Client example - server side using ServerSocket
- Android Server/Client example - client side using Socket

*** Updated example: Bi-directional communication between Client and Server, using ServerSocket, Socket, DataInputStream and DataOutputStream.

How to check my ip in Linux

In my next exercise, I have to know my IP. In order to know my IP, use the command:

$ifconfig -a


The inet addr under eth0 is my IP address. It's the IP behind router, not to the public.

android.net.TrafficStats: network traffic statistics

Class android.net.TrafficStats provides network traffic statistics. These statistics include bytes transmitted and received and network packets transmitted and received, over all interfaces, over the mobile interface, and on a per-UID basis.

These statistics may not be available on all platforms. If the statistics are not supported by this device, UNSUPPORTED will be returned.



main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   >
<TextView
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="@string/hello"
   />
<Button
   android:id="@+id/loadtrafficstats"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   android:text="Load TrafficStats"
   />
<TextView
   android:id="@+id/MobileRxBytes"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:id="@+id/MobileRxPackets"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:id="@+id/MobileTxBytes"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:id="@+id/MobileTxPackets"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />

<TextView
   android:id="@+id/TotalRxBytes"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:id="@+id/TotalRxPackets"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:id="@+id/TotalTxBytes"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
<TextView
   android:id="@+id/TotalTxPackets"
   android:layout_width="fill_parent"
   android:layout_height="wrap_content"
   />
</LinearLayout>

AndroidTrafficStats.java

package com.exercise.AndroidTrafficStats;

import android.app.Activity;
import android.net.TrafficStats;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

public class AndroidTrafficStats extends Activity {
   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);

       final TextView textMobileRxBytes = (TextView)findViewById(R.id.MobileRxBytes);
       final TextView textMobileRxPackets = (TextView)findViewById(R.id.MobileRxPackets);
       final TextView textMobileTxBytes = (TextView)findViewById(R.id.MobileTxBytes);
       final TextView textMobileTxPackets = (TextView)findViewById(R.id.MobileTxPackets);

       final TextView textTotalRxBytes = (TextView)findViewById(R.id.TotalRxBytes);
       final TextView textTotalRxPackets = (TextView)findViewById(R.id.TotalRxPackets);
       final TextView textTotalTxBytes = (TextView)findViewById(R.id.TotalTxBytes);
       final TextView textTotalTxPackets = (TextView)findViewById(R.id.TotalTxPackets);

       Button buttonLoadTrafficStats = (Button)findViewById(R.id.loadtrafficstats);
       buttonLoadTrafficStats.setOnClickListener(new Button.OnClickListener(){

   public void onClick(View v) {
    // TODO Auto-generated method stub
    if(TrafficStats.getMobileRxBytes() == TrafficStats.UNSUPPORTED)
    {
     textMobileRxBytes.setText("MobileRxBytes: " + "UNSUPPORTED!");
    }
    else{
     textMobileRxBytes.setText("MobileRxBytes: "
       + String.valueOf(TrafficStats.getMobileRxBytes()));
    }

    if(TrafficStats.getMobileRxPackets() == TrafficStats.UNSUPPORTED)
    {
     textMobileRxPackets.setText("MobileRxPackets: " + "UNSUPPORTED!");
    }
    else{
     textMobileRxPackets.setText("MobileRxPackets: "
       + String.valueOf(TrafficStats.getMobileRxPackets()));
    }

    if(TrafficStats.getMobileTxBytes() == TrafficStats.UNSUPPORTED)
    {
     textMobileTxBytes.setText("MobileTxBytes: " + "UNSUPPORTED!");
    }
    else{
     textMobileTxBytes.setText("MobileTxBytes: "
       + String.valueOf(TrafficStats.getMobileTxBytes()));
    }

    if(TrafficStats.getMobileTxPackets() == TrafficStats.UNSUPPORTED)
    {
     textMobileTxPackets.setText("MobileTxPackets: " + "UNSUPPORTED!");
    }
    else{
     textMobileTxPackets.setText("MobileTxPackets: "
       + String.valueOf(TrafficStats.getMobileTxPackets()));
    }

    if(TrafficStats.getTotalRxBytes() == TrafficStats.UNSUPPORTED)
    {
     textTotalRxBytes.setText("TotalRxBytes: " + "UNSUPPORTED!");
    }
    else{
     textTotalRxBytes.setText("TotalRxBytes: "
       + String.valueOf(TrafficStats.getTotalRxBytes()));
    }

    if(TrafficStats.getTotalRxPackets() == TrafficStats.UNSUPPORTED)
    {
     textTotalRxPackets.setText("TotalRxPackets: " + "UNSUPPORTED!");
    }
    else{
     textTotalRxPackets.setText("TotalRxPackets: "
       + String.valueOf(TrafficStats.getTotalRxPackets()));
    }

    if(TrafficStats.getTotalTxBytes() == TrafficStats.UNSUPPORTED)
    {
     textTotalTxBytes.setText("TotalTxBytes: " + "UNSUPPORTED!");
    }
    else{
     textTotalTxBytes.setText("TotalTxBytes: "
       + String.valueOf(TrafficStats.getTotalTxBytes()));
    }

    if(TrafficStats.getTotalTxPackets() == TrafficStats.UNSUPPORTED)
    {
     textTotalTxPackets.setText("TotalTxPackets: " + "UNSUPPORTED!");
    }
    else{
     textTotalTxPackets.setText("TotalTxPackets: "
       + String.valueOf(TrafficStats.getTotalTxPackets()));
    }

   }});

   }
}

Download the files.

Start Camera auto-focusing, autoFocus()

To start auto-focusing for Android camera, simple call autoFocus() method of the camera object, and registers a callback function to run when the camera is focused. This method is only valid when preview is active (between startPreview() and before stopPreview()).



Callers should check getFocusMode() to determine if this method should be called. If the camera does not support auto-focus, it is a no-op and onAutoFocus(boolean, Camera) callback will be called immediately.

If your application should not be installed on devices without auto-focus, you must declare that your application uses auto-focus with the <uses-feature> manifest element.

If the current flash mode is not FLASH_MODE_OFF, flash may be fired during auto-focus, depending on the driver and camera hardware.

Continuous from last exercise "Save the camera image using MediaStore".

Modify control.xml, define id for the background of the layout. Such that we can start auto-focus when user click on the background.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:id="@+id/background"
   android:orientation="vertical"
   android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   android:gravity="bottom"
   >
<Button
 android:id="@+id/takepicture"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:text=" * Take Picture "
 android:layout_gravity="right"
 android:layout_margin="10px"
 />
</LinearLayout>

Modify AndroidCamera.java to call camera.autoFocus(myAutoFocusCallback), and register the AutoFocusCallback.

package com.exercise.AndroidCamera;

import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.OutputStream;

import android.app.Activity;
import android.content.ContentValues;
import android.content.pm.ActivityInfo;
import android.graphics.PixelFormat;
import android.hardware.Camera;
import android.hardware.Camera.AutoFocusCallback;
import android.hardware.Camera.PictureCallback;
import android.hardware.Camera.ShutterCallback;
import android.net.Uri;
import android.os.Bundle;
import android.provider.MediaStore.Images.Media;
import android.view.LayoutInflater;
import android.view.SurfaceHolder;
import android.view.SurfaceView;
import android.view.View;
import android.view.ViewGroup.LayoutParams;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.Toast;

public class AndroidCamera extends Activity implements SurfaceHolder.Callback{

 Camera camera;
 SurfaceView surfaceView;
 SurfaceHolder surfaceHolder;
 boolean previewing = false;
 LayoutInflater controlInflater = null;

 Button buttonTakePicture;

 final int RESULT_SAVEIMAGE = 0;

   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);
       setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_LANDSCAPE);

       getWindow().setFormat(PixelFormat.UNKNOWN);
       surfaceView = (SurfaceView)findViewById(R.id.camerapreview);
       surfaceHolder = surfaceView.getHolder();
       surfaceHolder.addCallback(this);
       surfaceHolder.setType(SurfaceHolder.SURFACE_TYPE_PUSH_BUFFERS);

       controlInflater = LayoutInflater.from(getBaseContext());
       View viewControl = controlInflater.inflate(R.layout.control, null);
       LayoutParams layoutParamsControl
        = new LayoutParams(LayoutParams.FILL_PARENT,
        LayoutParams.FILL_PARENT);
       this.addContentView(viewControl, layoutParamsControl);

       buttonTakePicture = (Button)findViewById(R.id.takepicture);
       buttonTakePicture.setOnClickListener(new Button.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub
    camera.takePicture(myShutterCallback,
      myPictureCallback_RAW, myPictureCallback_JPG);
   }});

       LinearLayout layoutBackground = (LinearLayout)findViewById(R.id.background);
       layoutBackground.setOnClickListener(new LinearLayout.OnClickListener(){

   @Override
   public void onClick(View arg0) {
    // TODO Auto-generated method stub

    buttonTakePicture.setEnabled(false);
    camera.autoFocus(myAutoFocusCallback);
   }});
   }

   AutoFocusCallback myAutoFocusCallback = new AutoFocusCallback(){

  @Override
  public void onAutoFocus(boolean arg0, Camera arg1) {
   // TODO Auto-generated method stub
   buttonTakePicture.setEnabled(true);
  }};

   ShutterCallback myShutterCallback = new ShutterCallback(){

  @Override
  public void onShutter() {
   // TODO Auto-generated method stub

  }};

 PictureCallback myPictureCallback_RAW = new PictureCallback(){

  @Override
  public void onPictureTaken(byte[] arg0, Camera arg1) {
   // TODO Auto-generated method stub

  }};

 PictureCallback myPictureCallback_JPG = new PictureCallback(){

  @Override
  public void onPictureTaken(byte[] arg0, Camera arg1) {
   // TODO Auto-generated method stub
   /*Bitmap bitmapPicture
    = BitmapFactory.decodeByteArray(arg0, 0, arg0.length); */

   Uri uriTarget = getContentResolver().insert(Media.EXTERNAL_CONTENT_URI, new ContentValues());

   OutputStream imageFileOS;
   try {
    imageFileOS = getContentResolver().openOutputStream(uriTarget);
    imageFileOS.write(arg0);
    imageFileOS.flush();
    imageFileOS.close();

    Toast.makeText(AndroidCamera.this,
      "Image saved: " + uriTarget.toString(),
      Toast.LENGTH_LONG).show();

   } catch (FileNotFoundException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   } catch (IOException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   }

   camera.startPreview();
  }};

 @Override
 public void surfaceChanged(SurfaceHolder holder, int format, int width,
   int height) {
  // TODO Auto-generated method stub
  if(previewing){
   camera.stopPreview();
   previewing = false;
  }

  if (camera != null){
   try {
    camera.setPreviewDisplay(surfaceHolder);
    camera.startPreview();
    previewing = true;
   } catch (IOException e) {
    // TODO Auto-generated catch block
    e.printStackTrace();
   }
  }
 }

 @Override
 public void surfaceCreated(SurfaceHolder holder) {
  // TODO Auto-generated method stub
  camera = Camera.open();
 }

 @Override
 public void surfaceDestroyed(SurfaceHolder holder) {
  // TODO Auto-generated method stub
  camera.stopPreview();
  camera.release();
  camera = null;
  previewing = false;
 }
}

Download the files.

Related:
- Face detection for Camera
