Tuesday, June 12, 2012

Seek to specified time position with MediaPlayer - seekTo()

The method seekTo(int msec) of MediaPlayer seeks to specified time position.

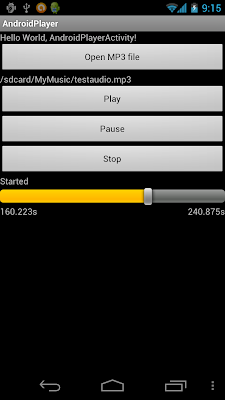

Seek to specified time position with MediaPlayer - seekTo()

Modify AndroidPlayerActivity.java from last exercise "Display playing time for MediaPlayer", implement OnSeekBarChangeListener of the SeekBar timeLine, and cmdSeekTo() method to call mediaPlayer.seekTo()

package com.exercise.AndroidPlayer;

import java.io.IOException;
import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

import android.app.Activity;
import android.content.Intent;
import android.media.MediaPlayer;
import android.media.MediaPlayer.OnErrorListener;
import android.net.Uri;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.SeekBar;
import android.widget.SeekBar.OnSeekBarChangeListener;
import android.widget.TextView;
import android.widget.Toast;

public class AndroidPlayerActivity extends Activity {

 TextView info, state;
 Button buttonOpen;
 Button buttonPlay, buttonPause, buttonStop;
 SeekBar timeLine;
 LinearLayout timeFrame;
 TextView timePos, timeDur;

 final static int RQS_OPEN_AUDIO_MP3 = 1;

 MediaPlayer mediaPlayer;
 String srcPath = null;
 enum MP_State {
     Idle, Initialized, Prepared, Started, Paused,
     Stopped, PlaybackCompleted, End, Error, Preparing}

 MP_State mediaPlayerState;

 //ScheduledExecutorService myScheduledExecutorService;

    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        buttonOpen = (Button)findViewById(R.id.open);
        buttonOpen.setOnClickListener(buttonOpenOnClickListener);

        info = (TextView)findViewById(R.id.info);
        state = (TextView)findViewById(R.id.state);

        buttonPlay = (Button)findViewById(R.id.play);
        buttonPlay.setOnClickListener(buttonPlayOnClickListener);
        buttonPause = (Button)findViewById(R.id.pause);
        buttonPause.setOnClickListener(buttonPauseOnClickListener);
        buttonStop = (Button)findViewById(R.id.stop);
        buttonStop.setOnClickListener(buttonStopOnClickListener);

        //
        timeLine = (SeekBar)findViewById(R.id.seekbartimeline);
        timeFrame = (LinearLayout)findViewById(R.id.timeframe);
     timePos = (TextView)findViewById(R.id.pos);
     timeDur = (TextView)findViewById(R.id.dur);

        ScheduledExecutorService myScheduledExecutorService = Executors.newScheduledThreadPool(1);

        myScheduledExecutorService.scheduleWithFixedDelay(
          new Runnable(){
     @Override
     public void run() {
      monitorHandler.sendMessage(monitorHandler.obtainMessage());
     }},
          200, //initialDelay
          200, //delay
          TimeUnit.MILLISECONDS);

        timeLine.setOnSeekBarChangeListener(timeLineChangeListener);

    }

    OnSeekBarChangeListener timeLineChangeListener
    = new OnSeekBarChangeListener(){

  @Override
  public void onProgressChanged(SeekBar seekbar, int progress, boolean fromUser) {
   if(fromUser){
    cmdSeekTo(progress);
   }

  }

  @Override
  public void onStartTrackingTouch(SeekBar seekBar) {
   // TODO Auto-generated method stub

  }

  @Override
  public void onStopTrackingTouch(SeekBar seekBar) {
   // TODO Auto-generated method stub

  }};

    Handler monitorHandler = new Handler(){

  @Override
  public void handleMessage(Message msg) {
   mediaPlayerMonitor();
  }

    };

    private void mediaPlayerMonitor(){
     if (mediaPlayer == null){
      timeLine.setVisibility(View.INVISIBLE);
      timeFrame.setVisibility(View.INVISIBLE);
     }else{
      if(mediaPlayer.isPlaying()){
       timeLine.setVisibility(View.VISIBLE);
          timeFrame.setVisibility(View.VISIBLE);

       int mediaDuration = mediaPlayer.getDuration();
       int mediaPosition = mediaPlayer.getCurrentPosition();
       timeLine.setMax(mediaDuration);
       timeLine.setProgress(mediaPosition);
       timePos.setText(String.valueOf((float)mediaPosition/1000) + "s");
          timeDur.setText(String.valueOf((float)mediaDuration/1000) + "s");
      }else{
       timeLine.setVisibility(View.INVISIBLE);
          timeFrame.setVisibility(View.INVISIBLE);
      }
     }
    }

    OnErrorListener mediaPlayerOnErrorListener
    = new OnErrorListener(){

  @Override
  public boolean onError(MediaPlayer mp, int what, int extra) {
   // TODO Auto-generated method stub

   mediaPlayerState = MP_State.Error;
   showMediaPlayerState();

   return false;
  }};


    private void cmdReset(){
     if (mediaPlayer == null){
      mediaPlayer = new MediaPlayer();
      mediaPlayer.setOnErrorListener(mediaPlayerOnErrorListener);
     }
     mediaPlayer.reset();
        mediaPlayerState = MP_State.Idle;
        showMediaPlayerState();
    }

    private void cmdSetDataSource(String path){
     if(mediaPlayerState == MP_State.Idle){
      try {
       mediaPlayer.setDataSource(path);
       mediaPlayerState = MP_State.Initialized;
      } catch (IllegalArgumentException e) {
       Toast.makeText(AndroidPlayerActivity.this,
         e.toString(), Toast.LENGTH_LONG).show();
       e.printStackTrace();
      } catch (IllegalStateException e) {
       Toast.makeText(AndroidPlayerActivity.this,
         e.toString(), Toast.LENGTH_LONG).show();
       e.printStackTrace();
      } catch (IOException e) {
       Toast.makeText(AndroidPlayerActivity.this,
         e.toString(), Toast.LENGTH_LONG).show();
       e.printStackTrace();
      }
     }else{
      Toast.makeText(AndroidPlayerActivity.this,
     "Invalid State@cmdSetDataSource - skip",
     Toast.LENGTH_LONG).show();
     }

     showMediaPlayerState();
    }

    private void cmdPrepare(){

     if(mediaPlayerState == MP_State.Initialized
      ||mediaPlayerState == MP_State.Stopped){
      try {
       mediaPlayer.prepare();
       mediaPlayerState = MP_State.Prepared;
      } catch (IllegalStateException e) {
       Toast.makeText(AndroidPlayerActivity.this,
         e.toString(), Toast.LENGTH_LONG).show();
       e.printStackTrace();
      } catch (IOException e) {
       Toast.makeText(AndroidPlayerActivity.this,
         e.toString(), Toast.LENGTH_LONG).show();
       e.printStackTrace();
      }
     }else{
      Toast.makeText(AndroidPlayerActivity.this,
     "Invalid State@cmdPrepare() - skip",
     Toast.LENGTH_LONG).show();
     }

     showMediaPlayerState();
    }

    private void cmdStart(){
     if(mediaPlayerState == MP_State.Prepared
          ||mediaPlayerState == MP_State.Started
          ||mediaPlayerState == MP_State.Paused
          ||mediaPlayerState == MP_State.PlaybackCompleted){
      mediaPlayer.start();
      mediaPlayerState = MP_State.Started;
     }else{
      Toast.makeText(AndroidPlayerActivity.this,
     "Invalid State@cmdStart() - skip",
     Toast.LENGTH_LONG).show();
     }

  showMediaPlayerState();
    }

    private void cmdPause(){
     if(mediaPlayerState == MP_State.Started
          ||mediaPlayerState == MP_State.Paused){
      mediaPlayer.pause();
      mediaPlayerState = MP_State.Paused;
     }else{
      Toast.makeText(AndroidPlayerActivity.this,
     "Invalid State@cmdPause() - skip",
     Toast.LENGTH_LONG).show();
     }
  showMediaPlayerState();
    }

    private void cmdStop(){

  if(mediaPlayerState == MP_State.Prepared
    ||mediaPlayerState == MP_State.Started
    ||mediaPlayerState == MP_State.Stopped
          ||mediaPlayerState == MP_State.Paused
          ||mediaPlayerState == MP_State.PlaybackCompleted){
   mediaPlayer.stop();
   mediaPlayerState = MP_State.Stopped;
     }else{
      Toast.makeText(AndroidPlayerActivity.this,
     "Invalid State@cmdStop() - skip",
     Toast.LENGTH_LONG).show();
     }
  showMediaPlayerState();

    }

    private void cmdSeekTo(int msec){
     if(mediaPlayerState == MP_State.Prepared
       ||mediaPlayerState == MP_State.Started
       ||mediaPlayerState == MP_State.Paused
       ||mediaPlayerState == MP_State.PlaybackCompleted){
      mediaPlayer.seekTo(msec);
     }else{
      Toast.makeText(AndroidPlayerActivity.this,
     "Invalid State@cmdSeekTo() - skip",
     Toast.LENGTH_LONG).show();
     }
     showMediaPlayerState();
    }

    private void showMediaPlayerState(){

     switch(mediaPlayerState){
     case Idle:
      state.setText("Idle");
      break;
     case Initialized:
      state.setText("Initialized");
      break;
     case Prepared:
      state.setText("Prepared");
      break;
     case Started:
      state.setText("Started");
      break;
     case Paused:
      state.setText("Paused");
      break;
     case Stopped:
      state.setText("Stopped");
      break;
     case PlaybackCompleted:
      state.setText("PlaybackCompleted");
      break;
     case End:
      state.setText("End");
      break;
     case Error:
      state.setText("Error");
      break;
     case Preparing:
      state.setText("Preparing");
      break;
     default:
      state.setText("Unknown!");
     }
    }

    OnClickListener buttonPlayOnClickListener
    = new OnClickListener(){

  @Override
  public void onClick(View v) {

   if(srcPath == null){
    Toast.makeText(AndroidPlayerActivity.this,
      "No file selected",
      Toast.LENGTH_LONG).show();
   }else{
    cmdPrepare();
    cmdStart();
   }

  }

    };

    OnClickListener buttonPauseOnClickListener
    = new OnClickListener(){

  @Override
  public void onClick(View v) {
   cmdPause();
  }

    };

    OnClickListener buttonStopOnClickListener
    = new OnClickListener(){

  @Override
  public void onClick(View v) {

   cmdStop();

  }

    };

    OnClickListener buttonOpenOnClickListener
    = new OnClickListener(){

  @Override
  public void onClick(View arg0) {
   Intent intent = new Intent();
   intent.setType("audio/mp3");
   intent.setAction(Intent.ACTION_GET_CONTENT);
   startActivityForResult(Intent.createChooser(
     intent, "Open Audio (mp3) file"), RQS_OPEN_AUDIO_MP3);

  }
    };

 @Override
 protected void onActivityResult(int requestCode, int resultCode, Intent data) {
  if (resultCode == RESULT_OK) {
   if (requestCode == RQS_OPEN_AUDIO_MP3) {
    Uri audioFileUri = data.getData();

    srcPath = audioFileUri.getPath();
    info.setText(srcPath);

    cmdReset();
    cmdSetDataSource(srcPath);

   }
  }
 }

}


Download the files.
