Saturday, December 12, 2015

Add and Remove view dynamically, with EditText/AutoCompleteTextView inside

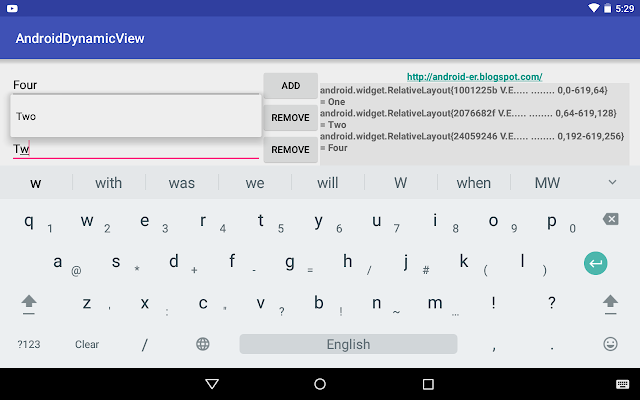

My previous post a example of "Add and Remove view dynamically", It is another version to have a EditText (AutoCompleteTextView actually) inside the dynamic view.


MainActivity.java
package com.blogspot.android_er.androiddynamicview;

import android.content.Context;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.text.method.ScrollingMovementMethod;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.AutoCompleteTextView;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {

    AutoCompleteTextView textIn;
    Button buttonAdd;
    LinearLayout container;
    TextView reList, info;

    private static final String[] NUMBER = new String[] {
            "One", "Two", "Three", "Four", "Five",
            "Six", "Seven", "Eight", "Nine", "Ten"
    };
    ArrayAdapter<String> adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        adapter = new ArrayAdapter<String>(this,
                android.R.layout.simple_dropdown_item_1line, NUMBER);

        textIn = (AutoCompleteTextView)findViewById(R.id.textin);
        textIn.setAdapter(adapter);

        buttonAdd = (Button)findViewById(R.id.add);
        container = (LinearLayout) findViewById(R.id.container);
        reList = (TextView)findViewById(R.id.relist);
        reList.setMovementMethod(new ScrollingMovementMethod());
        info = (TextView)findViewById(R.id.info);
        info.setMovementMethod(new ScrollingMovementMethod());

        buttonAdd.setOnClickListener(new View.OnClickListener(){
            @Override
            public void onClick(View v) {
                LayoutInflater layoutInflater =
                        (LayoutInflater) getBaseContext().getSystemService(Context.LAYOUT_INFLATER_SERVICE);
                final View addView = layoutInflater.inflate(R.layout.row, null);
                AutoCompleteTextView textOut = (AutoCompleteTextView)addView.findViewById(R.id.textout);
                textOut.setAdapter(adapter);
                textOut.setText(textIn.getText().toString());
                Button buttonRemove = (Button)addView.findViewById(R.id.remove);

                final View.OnClickListener thisListener = new View.OnClickListener(){
                    @Override
                    public void onClick(View v) {
                        info.append("thisListener called:\t" + this + "\n");
                        info.append("Remove addView: " + addView + "\n\n");
                        ((LinearLayout)addView.getParent()).removeView(addView);

                        listAllAddView();
                    }
                };

                buttonRemove.setOnClickListener(thisListener);
                container.addView(addView);

                info.append(
                        "thisListener:\t" + thisListener + "\n"
                                + "addView:\t" + addView + "\n\n"
                );

                listAllAddView();
            }
        });
    }

    private void listAllAddView(){
        reList.setText("");

        int childCount = container.getChildCount();
        for(int i=0; i<childCount; i++){
            View thisChild = container.getChildAt(i);
            reList.append(thisChild + "\n");

            AutoCompleteTextView childTextView = (AutoCompleteTextView) thisChild.findViewById(R.id.textout);
            String childTextViewValue = childTextView.getText().toString();
            reList.append("= " + childTextViewValue + "\n");
        }
    }

}


layout/activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal"
    android:padding="16dp"
    tools:context="com.blogspot.android_er.androiddynamicview.MainActivity">


    <LinearLayout
        android:layout_width="0dp"
        android:layout_height="match_parent"
        android:layout_weight="1"
        android:orientation="vertical">

        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <Button
                android:id="@+id/add"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentRight="true"
                android:text="Add" />

            <AutoCompleteTextView
                android:id="@+id/textin"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignParentLeft="true"
                android:layout_toLeftOf="@id/add" />
        </RelativeLayout>

        <LinearLayout
            android:id="@+id/container"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical"></LinearLayout>

    </LinearLayout>

    <LinearLayout
        android:layout_width="0dp"
        android:layout_height="match_parent"
        android:layout_weight="1"
        android:orientation="vertical">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_gravity="center_horizontal"
            android:autoLink="web"
            android:text="http://android-er.blogspot.com/"
            android:textStyle="bold" />

        <TextView
            android:id="@+id/relist"
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="1"
            android:textStyle="bold"
            android:background="#E0E0E0"/>
        <TextView
            android:id="@+id/info"
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="1"
            android:textStyle="italic"
            android:background="#D0D0D0"
            android:gravity="bottom"/>

    </LinearLayout>
</LinearLayout>


layout/row.xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">
    <Button
        android:id="@+id/remove"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentRight="true"
        android:text="Remove"/>
    <AutoCompleteTextView
        android:id="@+id/textout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_toLeftOf="@id/remove"/>
</RelativeLayout>

download filesDownload the files (Android Studio Format) .
